US M 1918 Caisson for theFrench 75mm mle/1897

Undergoing Restoration

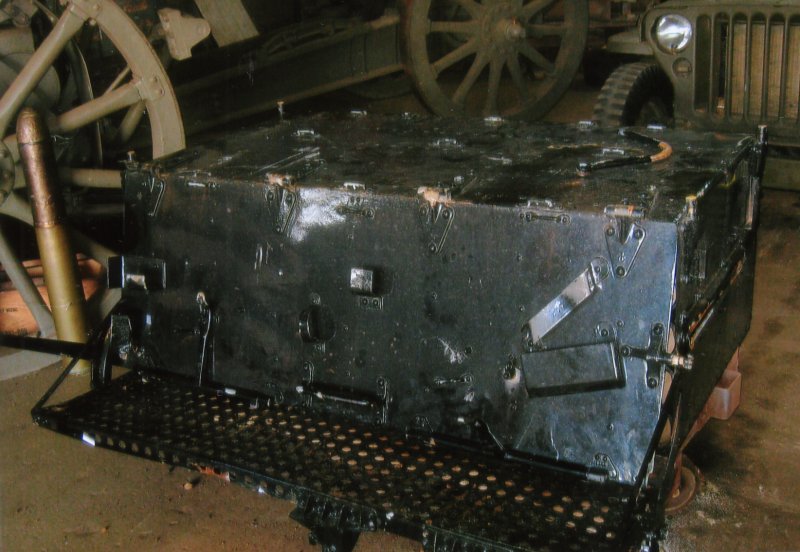

Below: This is a front view of the M1918 Caisson box

US M1918 Caisson box

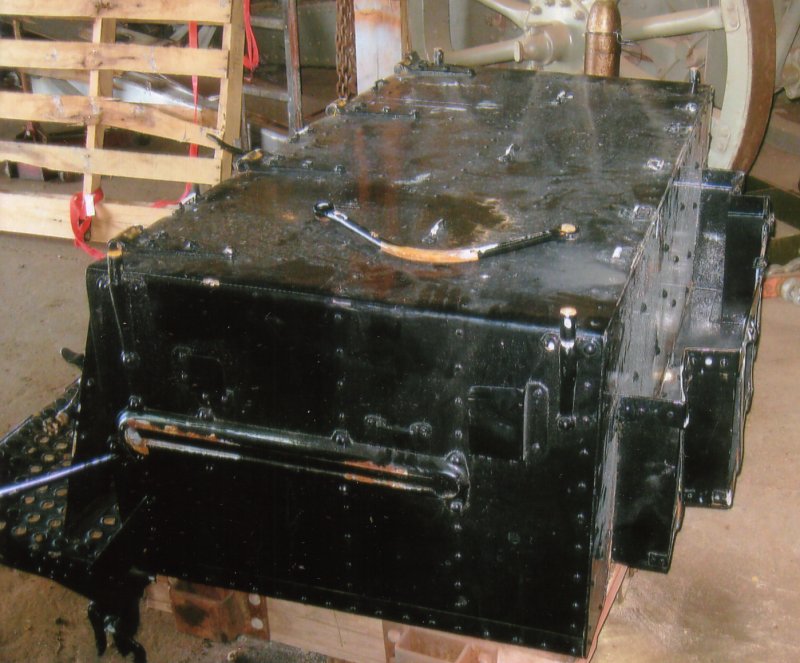

Below: Side and front views, this time with the box lid open showing the ammunition tubes.

M1918 Caisson side US M1918 Caisson

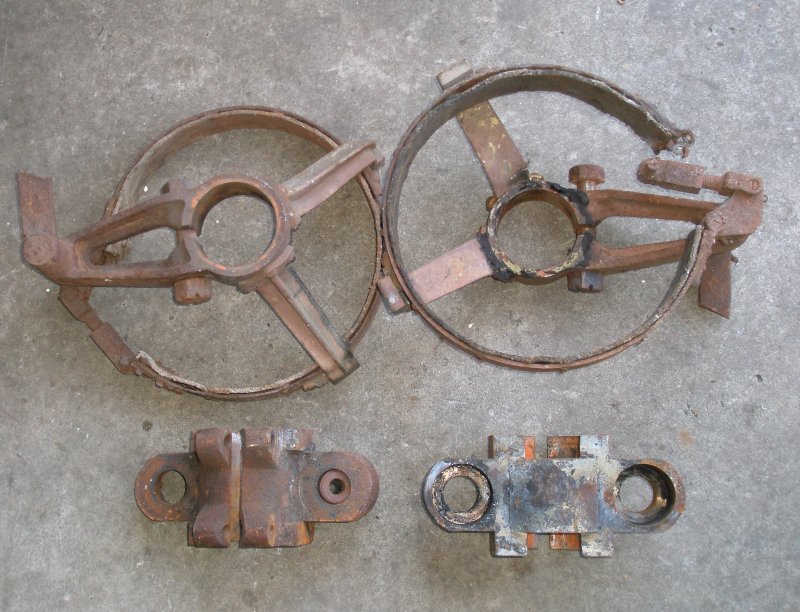

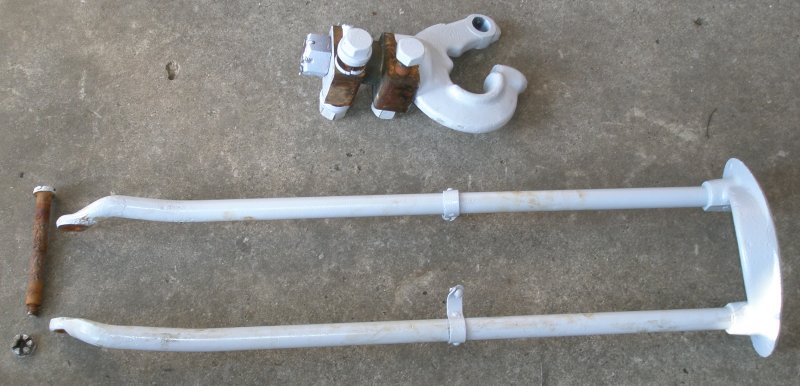

Below Left: The pintle hitch and prop stand for the M1918 Caisson. Below Right: Brakes and axle brackets.

Stand and Hitch for the M1918 Caisson Caisson Brakes and Axle Bracket



Below.  Photographs and color print from the American Car Foundry book illustrating the manufacturing process for American Limbers and Caissons.  The vehicles are painted “Two Color Camouflage” at the Detroit factory before being shipped to Army units. Notice that all the vehicles are painted in exactly the same pattern.  Also, the two colors consist of Green and Yellow with White and Black added as shades.

American Car & Foundry Paint Shop for Limbers American Car Foundry Co. Color Print of a Camouflaged Caisson American Car & Foundry Artillery Vehicle Storage Yard

Below: Original photograph of the French 75mm with the US M1918 Caisson. Likley this photo was taken after WW1.

French 75mm with the US M1918 Caisson



Below. US M 1918 Caisson for French 75mm mle/97 Ammunition

M 1918 Caisson

Below: Drawing of the US M1916 Fuze Setter which mounts on the M1918 Cassion.

M1916 Fuze Setter

Link to the US M1918 Caisson Limber

Link to the French 75mm mle/1897 gun
